CITA EV · Compact AC EV Charger

CITA Smart Pro 22

The CITA Smart Pro 22 is a compact, high-performance AC charger for homes, workplaces, apartments and commercial spaces. It delivers up to 22 kW on a three-phase supply with an integrated Type 2 socket.

Enquire for pricingWhatsApp an expert

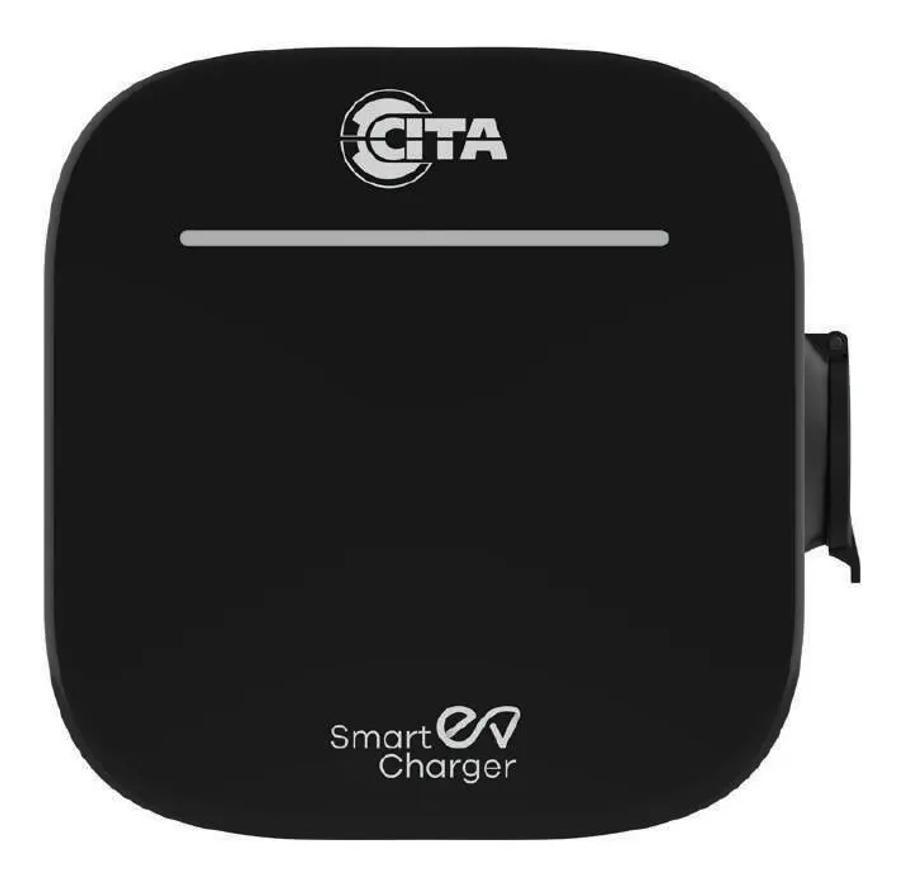

ACCITA Smart Pro 22, compact ac ev charger
Power
Up to 22 kW
Type
AC charging
Warranty
3 years
Best for
Homes, apartments & commercial spaces
PriceOn quote

Add it to your cart and order together with anything else. We'll call you with a price before anything is confirmed.

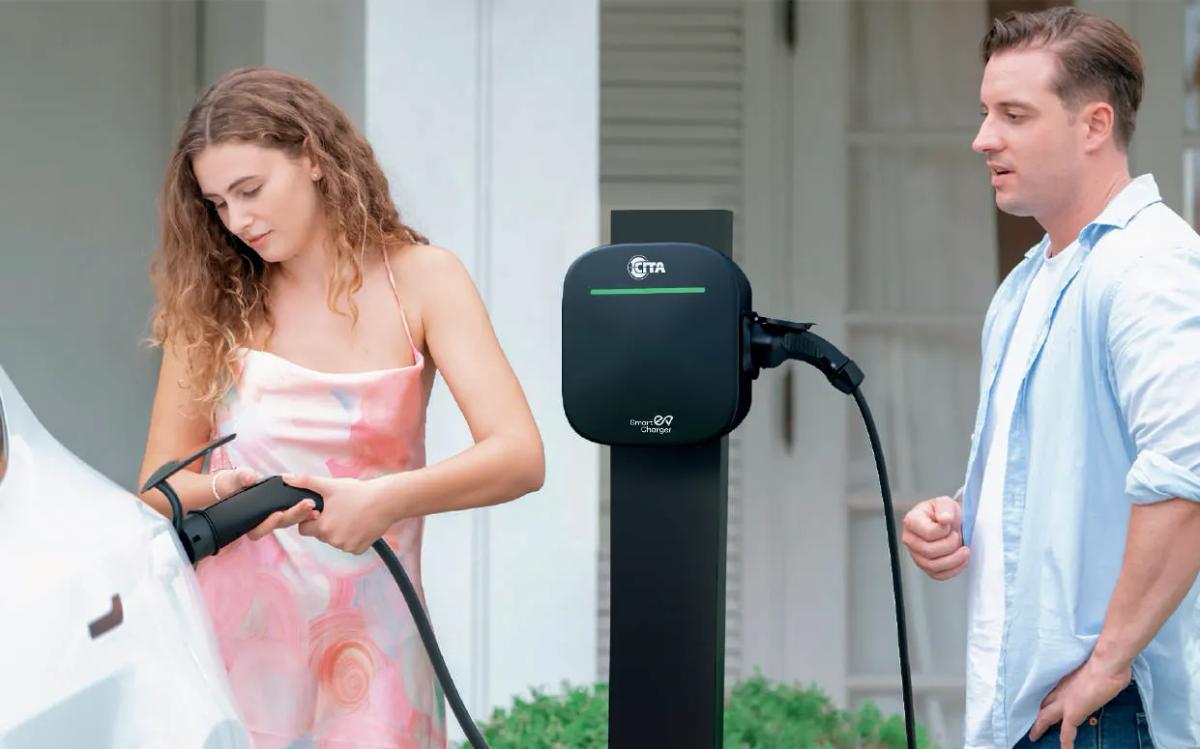

The CITA Smart Pro 22 installed and charging an electric car
Highlights

Higher-power AC charging

  • Mobile App access via WiFi / 4G / Ethernet
  • Compatible with all Type 2 charging cables
  • RFID access
  • MID certified energy meter optional
  • IP65 & IK10 protection
  • OCPP 1.6 JSON integration
Enquire for pricing
Specifications

Technical details.

From CITA EV's product sheet. Options and availability can vary; we confirm them with your quote.

Charging Capacity
Up to 22kW at 32A, 400V±10% AC
Charging Socket
IEC 62196 Type 2, IP54, locking
Charging Mode
Mode 3 (IEC 61851-1 / SAE J1772 compliant communication protocol)
Standard Communication
WiFi 2.4 GHz
Optional Communication
4G, Ethernet
Solar PV Compatibility
Optional, with 2nd external CT clamp
6mA DC Trip
Integrated
Protection Rating
IP65, IK10
Mounting
On a wall or on a pole
Housing Material
High impact plastic
Operating Temperature
-30 ~ +55°C
Dimension (WxHxD)
342mm x 342mm x 132mm
Enquire

Get a price for the CITA Smart Pro 22.

Tell us where it will go. We'll confirm the right setup, installation and price within one working day.

Prefer WhatsApp? Message +92 310 4446529
