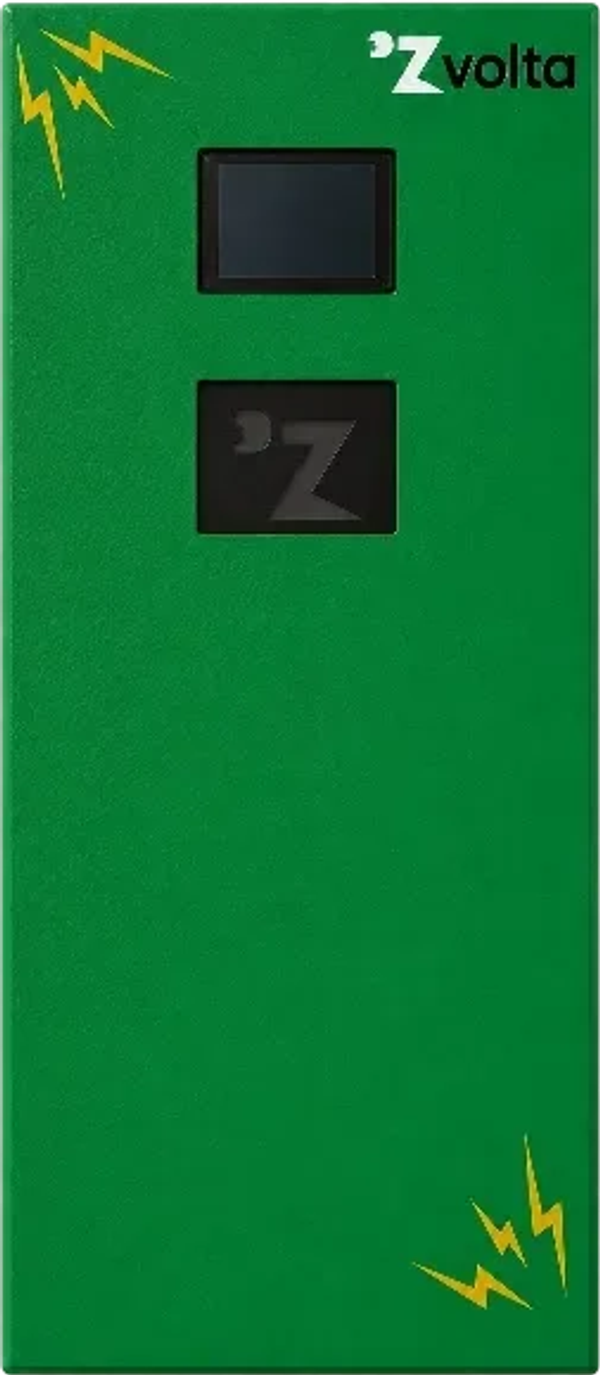

Zvolta 7 kW
A smart AC charger with a Type 2 gun for homes, apartments, offices and other places where cars park for a while. It runs on single-phase power, so it is easy to install.
- Homes with cars
- Apartment buildings
- Offices and coworking
- Cafes and restaurants
- Showrooms
Options and what's included.
- Free standard installation
- 2-year local warranty
- Built-in safety features at no extra cost
- Zvolta software, app and dashboard
- App and dashboard setup
- App-based payments
- No revenue sharing with Zvolta
- 0% interest installments for 12 months
- Add-on module at 50% of the charger price
- Earthing charged only if your site needs it
Technical details.
- Model
- ZVACS32-7K0-26-01
- Charger type
- Smart AC charger
- Input
- 1 phase, 230 V AC, 50 Hz
- Rated output
- 7 kVA / 32 A
- Output
- 1 phase, 230 V AC, 50 Hz
- Connector
- Type 2 gun
- Dimensions
- 305 × 685 × 175 mm
- Ingress protection
- IP54
- Protection
- 30 mA RCD, overload, over-voltage, level 3 surge protection, tamper detection
- Connectivity
- Wi-Fi and GSM
- Display
- LCD display and LED indicators
- Scheduling
- Schedulable, with auto cut-off
- Authentication
- Zvolta app
- Material
- MS
- Operating temperature
- −5°C to +60°C
- Humidity
- Up to 95%
- Wiring: red
- Live
- Wiring: blue
- Neutral
- Wiring: yellow/green
- Earth
Zvolta vs a typical charger.
What comes with every Zvolta charger, compared with what buyers usually get.
| Feature | Zvolta | Typical charger |
|---|---|---|
| Smart software | Included | Usually not included |
| App-based charging | Included | Usually not included |
| QR code start | Included | Usually not included |
| Payment handling | Included | Usually manual |
| Usage tracking | Included | Usually not available |
| Remote control | Included | Usually not available |
| Public listing in the app | Available | Usually not available |
| Help earning from your charger | Included | Usually not available |
| RCBO protection | Included | Often charged separately |
| MBO protection | Included | Often charged separately |
| Overvoltage protection | Included | Often charged separately |
| Surge protection | Included | Often charged separately |
| Standard installation | Free | Usually charged separately |
| Earthing | Charged only if needed | Often charged separately or unclear |
| Warranty | 2-year local warranty | Often limited or unclear |
| Local support | Included | Often limited |
Size and fit.
Drawn to scale. Check the wall or pole space before installation.
- Width
- 305 mm
- Height
- 685 mm
- Depth
- 175 mm
- Screen
- 78.5 × 52 mm
- Logo panel
- 77 × 56.5 mm
Made for how chargers really get used.
Built-in safety
RCBO, MBO, overvoltage and surge protection, included in the price.
Single-phase power
Works on single-phase supply, so most homes and offices can install it.
Automated payments
Users pay cashless through the Zvolta app. No cash handling.
Smart software
Track sessions, energy used and earnings from the app or dashboard.
Your price, your hours
Set your own charging price and choose when the charger is available.
Private, shared or public
Keep it for yourself, share it with selected users, or list it on the app.
From first call to first charge.
- 01
Share your requirement
Tell us where you want the charger and how you plan to use it.
- 02
Site review
We check the space, power and earthing needs, and recommend a setup.
- 03
Installation and setup
Our team installs the charger and connects the app and dashboard.
- 04
Start charging
Use it privately, share it, or open it to the public on the Zvolta app.
About the Zvolta 7 kW.
What is a 7 kW EV charger?
An AC charger with a Type 2 charging gun, made for daily car charging.
Does it work on single-phase power?
Yes. The Zvolta 7 kW charger works on single-phase power.
Can I install it at an office or apartment building?
Yes. It suits offices, apartments, coworking spaces and shared parking.
Can I keep it private?
Yes. Keep it private, share it with selected users, or open it to the public.
Can I earn from this charger?
Yes. Open it to public users on the Zvolta app whenever you want.
Is standard installation free?
Yes. If your site needs earthing work, only the earthing cost applies.
Does Zvolta take a share of my earnings?
No. You keep 100% of your earnings.
Do I have to pay extra for safety features?
No. RCBO, MBO, overvoltage and surge protection are included in the charger price.
What is earthing?
Earthing is a safety connection that sends excess current safely into the ground, protecting people and equipment. We check it during the site visit; earthing work is charged only if your site needs it.
Can I add more chargers later?
Yes. Start with one charger and add more as demand grows.
What warranty do I get?
Every Zvolta charger comes with a 2-year local warranty.
Who looks after the charger after installation?
Zvolta repairs faults free of charge during the 2-year warranty. After that, service visits and repairs are charged, and we quote before any work.
Where are Zvolta chargers made?
Zvolta chargers are made in Pakistan, and our local team installs and supports them.
Does it have safety protection?
Yes. It includes RCBO, MBO, overvoltage and surge protection at no extra cost.
