CITA EV · Compact DC Charger

CITA Smart 30 DC

CITA Smart 30 DC is a fast, efficient and reliable compact charger for CCS2-supported electric vehicles, delivering up to 30kW output.

Enquire for pricingWhatsApp an expert

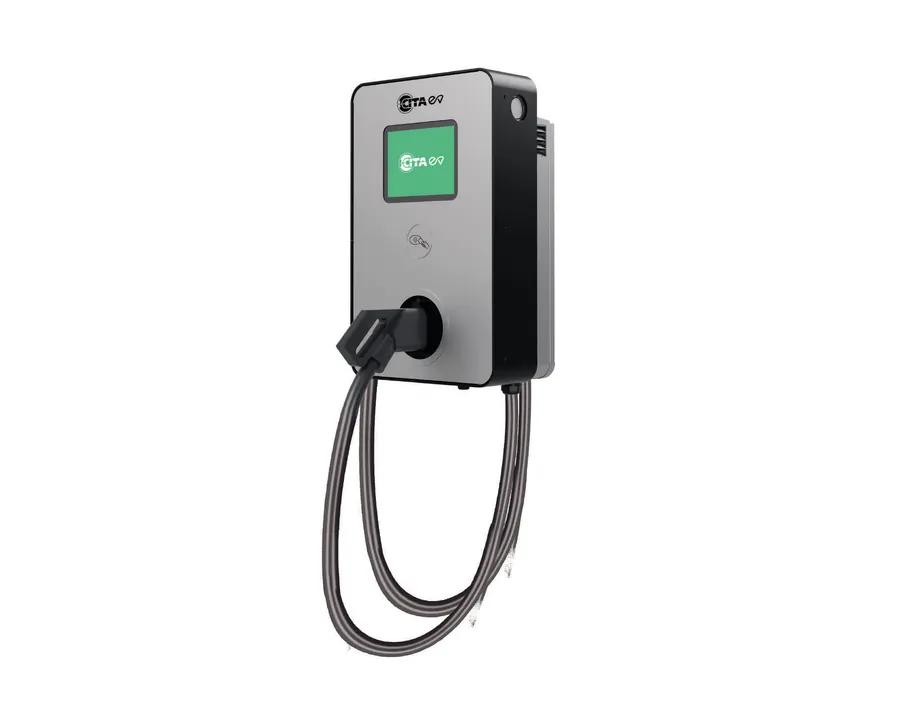

DCCITA Smart 30 DC, compact dc charger
Power
30kW
Type
DC fast charging
Warranty
2 years
Best for
Site suitability on enquiry
PriceOn quote

Add it to your cart and order together with anything else. We'll call you with a price before anything is confirmed.

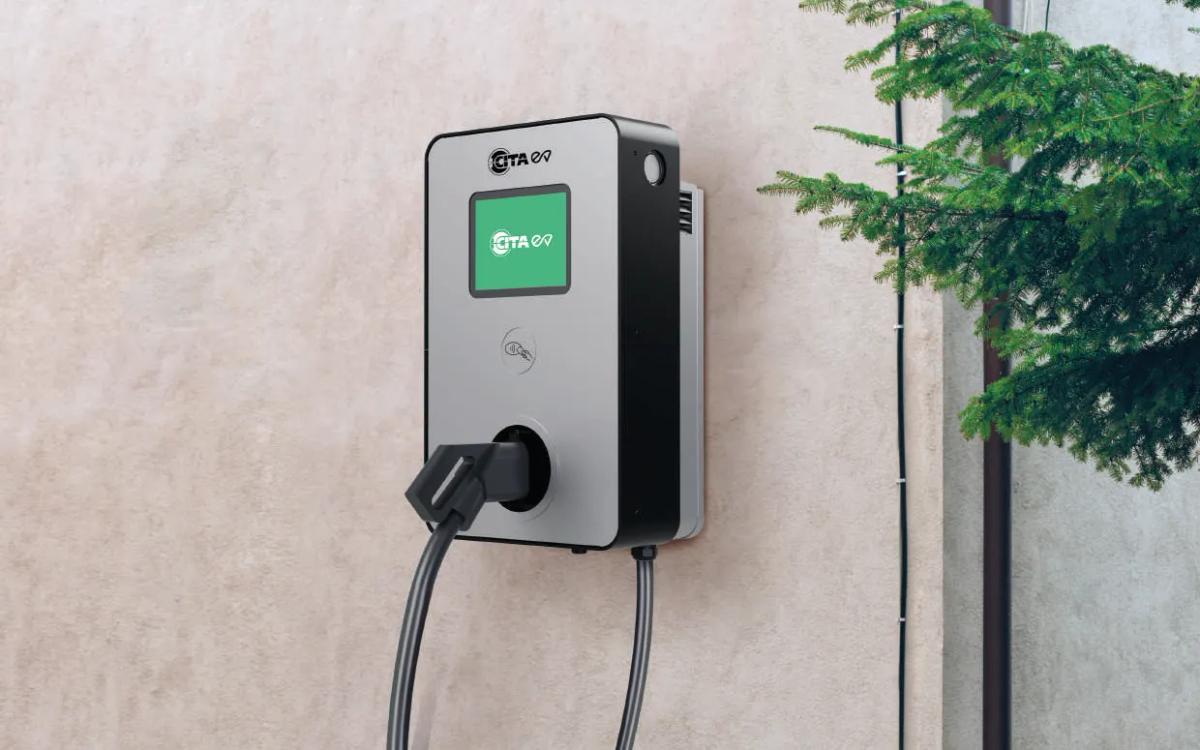

The CITA Smart 30 DC installed and charging an electric car
Highlights

CCS2-compatible EV charging

  • 1 DC gun
  • OCPP 1.6 backend via 4G / Ethernet
  • RCD AC/DC protection
  • 10.4-inch LCD touchscreen
  • RFID card reader
  • Optional POS payment terminal
Enquire for pricing
Specifications

Technical details.

From CITA EV's product sheet. Options and availability can vary; we confirm them with your quote.

Charging Capacity
30kW
Charging Socket
1 DC Connector: CCS2 (IEC 62196-3) or CHAdeMO (IEC 62196-1) or GB/T (20234.3)
Charging Mode
Mode 3 (IEC 61851-1 / SAE J1772 compliant communication protocol)
Cable Length
3.5M
Optional Communication
Ethernet / 4G communication
LCD Screen
10.4-inch color touch screen
POS Payment Terminal
Payter P68 or Nayax POS Terminals (Optional)
Protection Rating
IP54, IK10
Mounting
Wall-mount / Floor-stand on a pole
Housing Material
Galvanized steel
Operating Temperature
-20 ~ +60°C
Dimension (WxHxD)
456mm x 361mm x 734mm
